Bronze and Brass Fasteners Manufacturing Factory
Specifications :Wood Screws, Tapping Screws, Machine Screws, Bolts, Studs, Hex Nuts, Flange Nuts, Square Nuts, Acorn Nuts, Long Nuts, Washers, Stamping Parts, Machini
Materials :Wood Screws, Tapping Screws, Machine Screws, Bolts, Studs, Hex Nuts, Flange Nuts, Square Nuts, Acorn Nuts, Long Nuts, Washers, Stamping Parts, Machini
Sizes :Wood Screws, Tapping Screws, Machine Screws, Bolts, Studs, Hex Nuts, Flange Nuts, Square Nuts, Acorn Nuts, Long Nuts, Washers, Stamping Parts, Machini
Yushung specializes in manufacturing silicon bronze nuts with inch threads and metric threads.
Main specs:
Silicon bronze heavy hex nuts
Silicon bronze finished hex nuts
Silicon bronze jam hex nuts
Silicon bronze thin hex nuts
Silicon bronze machine screw hex nuts
Silicon bronze flange nuts
Silicon bronze square nuts
Silicon bronze acorn nuts
Silicon bronze hex cap nuts
Silicon bronze coupling nuts
Normal size:
Inch size:6g to 2 1/2"
Metric size:M3 to M60
Specifications :unc,unf,unef
Materials :Silicon bronze
Sizes :inch size and metric size
Yushung specializes in manufacturing silicon bronze finished hex nuts with inch size and metric size.A standard six sided hex finish nut, for use with bolts or threaded rod.
Main standard:ISO4032,DIN934,ANSI/ASME B18.2.2,GB/T6170,etc.
Main specs:M3 - M60 or 1/4" - 2 1/2".
Most of specs are in stock.
Specifications :unc,unf,unef
Materials :Silicon bronze
Sizes :inch size and metric size
Silicon bronze machine screw nuts are used to connect both metal and wood components.They are also used in conjunction with silicon bronze bolts,screws,studs and any other silicon bronze fastener that has machine screw threads.Silicon bronze provides superior corrosion resistance and excellent electrical conductivity.
Yushung produces silicon bronze machine screw nuts with inch size
according to ASME B18.2.2.
Main specs:6-32unc,8-32unc,10-24unc,10-32unc,12-24unc,1/4-20unc,5/16-18unc,3/8-16unc,etc.
Specifications :unc,unf
Materials :Silicon bronze
Sizes :inch size
These nuts have a large hex with a smooth dome top.
Ideally suited for a decorative finish or where you need a safe smooth finish to a bolt.
Silicon bronze acorn/dome nuts are Yushung's competitive products with inch size and metric size.
usual specs:M5 - M20,10g - 1".
Special specs can be customised.
Specifications :unc,unf,unef
Materials :Silicon bronze
Sizes :inch size and metric size
Silicon bronze alloy C65500 is as corrosion resistant as copper but with better strength and fatigue endurance.
Yushung produces silicon bronze special nuts like kidney style,etc.
No MOQ limit.
All are for customers' need.Even 1 pc,we we'd like to produce it for customers.
Specifications :Silicon bronze special nuts with kidney style
Materials :Silicon bronze
Sizes :inch size and metric size
These nuts are thinner than a standard finished hex nut,and are normally used in conjunction with another nut to lock into place on a bolt/thread.
When a thin nut 'locks', it results in a slight distortion of the thread on the nut, which stops it from undoing due to vibration/movement.
Silicon bronze thin hex nuts in C65100 are Yushung's competitive products with high-precision.Go and No-Go must be guaranteed.
UNC,UNF,UNEF and metric threads are available.
Such as 14-24,3/8-24,7/16-20.1/2-20,5/8-18,11/32-24,3/4-16,etc.
Specifications :unc,unf,unef
Materials :Silicon bronze
Sizes :inch size and metric size
Heavy hex nuts have a larger across flat or spanner size and are thicker than a finish hex nut.
Generally used in timber applications where a heavy duty nut to provide additional strength is required.
Silicon bronze heavy hex nuts are Yushung's competitive products with inch size and metric size.
Inch size:1/4" - 2 1/2"
Metric size:M5 - M60
Conform to F467.
Specifications :unc,unf,unef
Materials :Silicon bronze
Sizes :inch size and metric size
A standard six sided hex 'finish' nut, for use with bolts or threaded rod.
Stock Sizes: 3/16 - 2 1/2" UNC
Metric M5 - M60
Materials :silicon bronze
Sizes :M5-M60
C65100 silicon bronze alloy has good corrosion resistance and moderate strength.DIN934 M3 - M36 silicon bronze hex nuts are our regular item.We stock finished nuts and raw material.So delivery will be prompt.
Specifications :M36
Materials :silicon bronze
Sizes :M3 - M36
C65500 silicon bronze is a high strength,engineering alloy material that has excellent resistance to a wide range of corrosives, including fresh and salt water,most acids,alkalies,and organic chemicals.
We generally produce C65500 silicon bronze hex nuts metric size from M5 to M36.But smaller or bigger ones can be made.
Specifications :M5 to M36
Materials :C65500 Silicon bronze
Sizes :M5 to M36
A four sided square nut, with bevelled corners on one side, ideal for a unique finish on your project.
Main size:1/4" - 3/4".
Grade:C65100,C65500.
Specifications :1/4
Materials :silicon bronze
Sizes :1/4" - 3/4"
Yushung produces silicon bronze nylon lock hex nuts from 1/4" to 3/4".Other specs can be custom made.
Materials :silicon bronze
Sizes :1/4" to 3/4"
Available in C65100 silicon bronze.
According to ANSI,DIN,BSW,etc.
Special size can be customized.
Hardness:HRB 80 min.
Main specs:1/4" - 3/4" or M6 - M20
1/4"-20unc,5/16"-18unc,3/8"-16unc,1/2"-13unc is in stock.
Specifications :silicon bronze flange hex nut
Materials :Silicon bronze
Sizes :inch size and metric size
Yushung produces special extra hard silicon bronze square / hexagon head machince 14-24 NS threads for customers' use.
Thread:14-24NS
Length:1" - 6"
Surface can be coated Ni,Silver,etc.
Specifications :14-24 NS Extra hard silicon bronze square head machince screws
Materials :Silicon bronze
Sizes :inch size
Yushung produces bronze u-botls according to customers' drawing or sample.
1/4"-1" or M6 - M30 can be made.
Material:C65100,C65500,C51000,C521000
Specifications :Bronze bolts silicon bronze or phosphor bronze U-Bolts
Materials :Silicon bronze phosphor bronze
Sizes :inch size and metric size
Silicon bronze fin neck bolt flat head is Yushung's competitive products.
Main specs
1/4-20x1 1/2" - 12"
5/16-18x2" - 12"
3/8-16x2" - 35"
7/16-14x2"-35"
1/2-13x2"-35"
5/8-11x3"-35"
3/4-10x3"-35"
Materials :Silicon bronze
Sizes :inch size
This silicon bronze penta head bolt with extra height of head.
Thread:3/8",1/2",5/8".
Hardness HRB80 - 95
Tensile strength 500 -650MPa.
Materials :silicon bronze
Coach or cup head bolts are traditionally a timber fastening. They have a smooth dome head–this makes them suitable to use in floors,steps or high traffic areas where a smooth finish is critical,or in outdoor furniture,raised garden beds,timber gates and fences, marine boat building and decks and docks.
The square under head is designed to ‘lock’ the bolt in place in a round hole to enable tightening with a nut and washer.
Available in full thread or part thread.Part thread has the advantage when used in a timber application for creating a superior seal between the timber and the plain shank of the screw, reducing the ingress of moisture.
C65500 silicon bronze has excellent resistance to a wide range of corrosives,including fresh and salt water,most acids,alkalies, salts,and organic chemicals.
C65500 Silicon Bronze Coach Bolts are our factories' competitive products.Main specs:
10gx1" to 6" full threaded.
1/4"-20x1" to 12"
5/16-18x1" to 25"
3/8"-16x1 1/4" to 40"
7/16-14x3" to 12"
1/2"-13x2 1/2" to 40"
5/8"-11x4" to 40"
3/4"-10x4" to 40".
Materials :C65500 silicon bronze
Sizes :10g - 3/4"
Yushung generally produce silicon bronze screws penta washer head from 3/8" to 5/8".Custom-made parts are available,such as extra thick head,etc.
Materials :silicon bronze
Sizes :3/8
Yushung specializes in manufacturing silicon bronze carraige bolts in C65100,C65500.
Metric size and inch size can be supplied.
Main specs:
10g-24x1" to 6" with full threads
1/4-20x1" to 12" full threads or full body with cutting threads
5/16-18x1" to 12"
3/8-16x1" to 40"
1/2-13x2" to 40"
5/8-11x3" to 40"
3/4-10x3" to 40"
Specifications :unc,unf,unef
Materials :Silicon bronze
Sizes :inch size and metric size
Yushung specializes in manufacturing bronze & brass fasteners,fixings.Silicon bronze hex cap screws are Yushung's competitive products,with inch size and metric size.
Range:1/4" to 3" or M5 to M80.
Length:3/8" to 25" to 10mm to 650mm.
Special size can customised.
Specifications :unc,unf,unef
Materials :Silicon bronze
Sizes :inch size and metric size
Timber lag bolt, hex lag screw or coach is a large silicon bronze timber woodscrew with a hex head.
This is a heavy duty fastener, generally used for attaching metal
components to timber such as gate hinges.
Available in C65500 silicon bronze.
According to ANSI,DIN,etc.
Special size can be customized.
Hardness:HRB 80 min
Main specs:10g x 1" - 4"
1/4" x 1" - 12"
5/16" x 1 1/4" - 12"
3/8"x 1 1/4" - 12"
7/16"x1 1/ 2"-12"
1/2"x1 1/2"-12"
5/8"x4" - 12"
3/4"x4" - 12"
Full body,cutting threads.
Specifications :Copper bolts bronze bolts Yushung specializes in manufacturing silicon bronze hex Lag botls
Materials :Silicon bronze
Sizes :inch size and metric size
A hangar bolt or lag screw is a large silicon bronze timber woodscrew and machine screw.Nominally half timber and half machine screw,they are designed to be fastened in to timber with additional hardware fastened with a nut and washer or threaded component.
Silicon bronze hanger bolts were threaded at both ends,a lag screw with cutting threads at one end and machine screw threads on the other.They are designed for insertion into a pre-drilled hole and are ideal for overhead application,such as suspending electrical wiring or sheet metal from wooden stuctures.
We produce silicon bronze hanger bolts from 1/4" to 1",length can be custom made.
Specifications :Copper bolts bronze bolts Silicon bronze hanger bolts
Materials :Silicon bronze
Sizes :inch size and metric size
Hex head bolts or set screws are a hexagonal head bolt with metal thread, that can either fastened with a nut and washer or into a female thread or component.
Bolts are full thread unless otherwise specified.
These silicon bronze hex cap bolts conform to ASTM F468K.
Go/No go of theads must be guaranteed.
Main range: 1/4" to 1".
Materials :silicon bronze
Sizes :1/4
Available in C65100 or C65500 silicon bronze.
According to ANSI,DIN,BSW,etc.
Partial threads or full threads.
Special size can be customized.
Hardness:HRB 80 min
Main specs:
6-32x1/2" to 1"
8-32x1/2" to 1 1/2"
10-32x1/2 to 1 1/2
1/4-20x1" to 2"
5/16-18x1" to 2 1/2"
3/8-16x1" to 3"
1/2-13x 1" to 3"
5/8-11x2" to 4"
3/4-10x2" to 4"
7/8-9x2" to 4"
1-8x3" to 4"
And
M5 x 10 to 50
M6 x 10 to 80
M8 x 15 to 80
M10 x 20 to 100
M12 x 30 to 100
M16 x 50 to 150
M20 x 50 to 150
Specifications :Bronze bolts silicon bronze socket cap bolts
Materials :Silicon bronze
Sizes :inch size and metric size
Available in C65100 or C65500 silicon bronze.
According to ANSI,DIN,BSW,etc.
Partial threads or full threads.
Special size can be customized.
Hardness:HRB 80 min
Main specs:M4 - M24 or 8g - 1".
Hot sale for 1/2" x 3" - 5"
5/8"x3"-5"
3/4"x4"-6".
Specifications :unc,unf,unef
Materials :Silicon bronze
Sizes :inch size and metric size
Yushung produces silicon bronze chicago screws & nuts with metric and inch size.Silicon bronze in C65100 and C65500.
Materials :silicon bronze
Sizes :8g - 1/2"
Silicon bronze brackets were customised for customers.
Yushung uses silicon bronze plate with thickness from 3mm - 15mm.
Custom length,width,thickness,shape,make according to drawings or sample.
By Yushung's comprehensive edge,match with studbolt,nut,washer,etc.
Specifications :Copper fixings silicon bronze brackets
Materials :Silicon bronze
Sizes :inch size and metric size
Silicon bronze ring shank nails are commonly used in wood boat construction and repair.They will not rust or corrode in marine use.
Available in C65100 or C65500 silicon bronze.
According to ANSI,DIN,BSW,etc.
Main specs:15g - 6g
lenght:5/8" - 6".
Special size can be customized.
Specifications :Copper nails silicon bronze ring shank nails
Materials :Silicon bronze
Sizes :inch size and metric size
Yushung has the most comprehensive manufacturing ability of silicon bronze wood screws with cutting threads full body.
Shank:4g - 24g,even bigger shank can be made.
Length:3/8" to 12" can be made.
Drive way:Slot,R&P,Square,Torx
Head style:CSK,oval,round,pan,hexagon,etc.
Materials :silicon bronze C65100
Sizes :4g - 24g
A traditional countersunk or flat head woodscrew with a traditional slot drive - designed to finish flush with the surface of your timber/hardware.
With deep well cut slots,these screws can be power driven with the correct size driver tip.
Yushung produces the most comprehensive silicon bronze wood screws in fastener industry.Traditional cut threads made from C65100 grade silicon bronze.Slotted flat head silicon bronze wood screws are well received by customers.
Poduce by IFI,DIN,BSW,GB,etc.
Main specs:4g - 24g or M3 - M10.
Length:3/8" - 6" or 10mm - 150mm.
Hardness:HRB80 - 95.
Specifications : silicon bronze wood screws
Materials :Silicon bronze 65100 grade
Sizes :inch size and metric size
With an oval or raised head,this screw has both a countersink to recess into your work,and a raised head to provide a stylish and unqiue finish.Ideally suited to handles,old style switch surrounds and other antique hardware and fixings as well as woodwork.
Yushung produces the most comprehensive silicon bronze slotted oval head wood screws with full body,cutting threads.
Main specs:4g - 24g
Length:3/8" - 6".
Special specs can be customized.
Specifications :Copper screws silicon bronze slotted oval head wood screws
Materials :Silicon bronze
Sizes :inch size and metric size
A round or dome head, this screw finishes proud to your timber/hardware, with a hemispherical head.
Yushung produces the most comprehensive silicon bronze slotted round head wood screws with full body,cutting threads.
Length of thread is 2/3 shank length.
Main specs:4g - 24g
Length:3/8" - 6".
Special specs can be customized.
Specifications :Copper based alloy silicon bronze slotted round head wood screws
Materials :Silicon bronze
Sizes :inch size and metric size
A countersunk or flat woodscrew with a square (robinson) drive. With deep set square socket, our screws have a positive engagement, enabling a rigid alignment of the fastener
on the driver,ideal for hard to reach places.
Yushung produces silicon bronze flat head square drive wood screws
with full body,cutting threads,2/3 thread length.
Main specs:4g - 24g
Length:3/8"-6"
Special specs,such as 5/8",3/4" shank wood screws can be made.
Specifications :Copper screws silicon bronze flat head square drive wood screws
Materials :Silicon bronze
Sizes :inch size and metric size
Yushung produces the most comprehensive silicon bronze R&P flat head wood screws with full body,cutting threads.
Main specs:4g - 20g
Length:3/8" - 6"
Special specs can be custom -made.
Specifications :Copper screws silicon bronze R&P flat head wood screws
Materials :Silicon bronze
Sizes :inch size and metric size
Yushung produces the most comprehensive silicon bronze R&P oval head wood screws with full body,cutting threads.
Main specs,4g - 14g,especially 7G.
Length:3/8" - 4".
Special specs can be customized.
Specifications :Copper screws silicon bronze R&P oval head wood screws
Materials :Silicon bronze
Sizes :inch size and metric size
A countersunk metal thread machine screw with a traditional slot drive,that can either fastened with a nut and washer or into a female thread or component.
Yushung produces silicon bronze machine screws slotted flat head as follows.
DIN963:M3 - M20
ANSI/ASTM B18.6.3 4g- 3/4"
Materials :silicon bronze
A oval or raised head metal thread machine screw with a traditional slot drive, that can either fastened with a nut and washer or into a female thread or component.
Yushung produces silicon bronze machine screws slotted oval head as follows.
DIN964:M3 - M16
ASTM B18.6.3 3g-3/4".
Materials :silicon bronze
A round head metal thread machine screw with a traditional slot drive, that can either fastened with a nut and washer or into a female thread or component.
ASME M18.6.3 6G-1/2"
BS450 1/8"-1/2"
Materials :silicon bronze
Available in C65100 or C65500 silicon bronze.
According to ANSI,DIN,BSW,etc.
Special size can be customized.
Head style:flat,oval,round,pan,binding,fillister,truss,cheese,etc.
Length:4 - 150mm.
Shank diameter:2 - 20mm.
Specifications :Copper screw silicon bronze machine screws
Materials :Silicon bronze
Sizes :inch size and metric size
Available in C65100 or C65500 silicon bronze.
According to ANSI,DIN,ISO,etc.
With metric,UNC,UNF,UN threades,etc.
Usual length:1meter/2meter,3Feet/6Feet
Special length can be customized.
Main specs:
1/4-20 x 3'/6',
5/16-18x3'/6',
3/8-16x3'/6',
7/16-14x3'/6',
1/2-13x3'/6',
5/8-11x3'/6',
3/4-10x3'/6',
7/8-9x3'/6',
1-8x3'/6',
M5 x 1000mm,
M6 x 1000mm,
M8x1000mm,
M10x1000mm,
M12x1000mm,
M14x1000mm,
M16x1000mm,
M18x1000mm,
M20x1000mm,
M22x1000mm,
M24x1000mm,
M27x1000mm,
M30x1000mm
Other specs and length can be custom-made.
Specifications :Bronze bolts silicon bronze studbolts
Materials :Silicon bronze
Sizes :公制和英制尺寸
Available in C65100 or C65500 silicon bronze.
According to ANSI,DIN,BSW,etc.
Special size can be customized.
Hardness:HRB 80 min
Spring split washers are a locking washer with an offset twist providing a tension between the fastener and the parent material to prevent loosening through vibration.
Main specs:M4 - M30 or 8g - 1 1/4".
Specifications :Copper washer silicon bronze spring lockwashers
Materials :Silicon bronze
Sizes :inch size and metric size
Available in C65100 or C65500 silicon bronze.
According to DIN6796,etc.
Special size can be customized.
Hardness:HRB 80 min
Main specs:M6,M8,M10,M12,M16,M20,etc.
Belleville or spring disc washers are a cupped washer used in place of a spring and flat washer combination ideally suited to electrical applications where conductivity between the fastener and parent material is critical.As the washer in compressed during installation,it engages at a molecular level ‘biting’ in to the parent material.
Specifications :Bronze washers silicon bronze belleville washers
Materials :Silicon bronze
Sizes :metric size
Available in C65100 or C65500 silicon bronze.
According to ANSI,etc.
Special size can be customized.
Hardness:HRB 80 min
A finish or cup washer, these are designed to fit a countersunk/flat or oval/raised woodscrew.
These decorative washers give a large decorative head that sits above the surface of your timber.
Size gauge is matched to the woodscrew gauge.
Main specs:6g,8g,10g,12g,1/4",5/16",3/8".
Specifications :Bronze washers silicon bronze finishing cup washers
Materials :Silicon bronze
Sizes :inch size and metric size
Silicon bronze flat washers are used to increase the surface area of fasteners,in order to evenly distribute the force applied when tightening them to a surface.They are also used to prevent loosening due to vibration,to stop the bolt or screw from pulling through,and act as spacers.
Silicon bronze Washers
from 6g to 3" or M4 to M60.
Non standard washers can be made,thickness reaches 10mm.
Materials :silicon bronze
Sizes :6g to 3
Available in H62 or H65,C36000 brass,etc.
According to ANSI,DIN,BSW,etc.
Main specs:M3 - M20 or 10g - 1".
Materials :brass
Sizes :inch size and metric size
Available in H62 or H65,C36000 brass,etc.
According to ANSI,DIN,BSW,etc.
Main specs:1/4 - 2 1/2" or M5 - M60.
Materials :brass
Sizes :inch size and metric size
Available in H62 or H65,C36000 brass,etc.
According to ANSI,DIN,BSW,etc.
Including finished hex nuts,heavy hex nuts,machine screws nuts,jam hex nuts,acorn nuts,flange hex nuts,square nuts,etc.
Main specs:M5 - M60 or 10g - 2 1/2".
Specifications :Copper nuts brass nuts
Materials :brass
Sizes :inch size and metric size
Brass flange nuts can be provided with inch size and metric size.
Cold forming brass and silicon bronze flange nuts are workable.
Materials :brass
Yushung produces brass nylon lock nuts from 10g to 3/4".
Materials :brass
Sizes :10g -3/4"
Available in H62 or H65 brass.
According to DIN84,DIN85,etc.
Main specs:M2 - M12.
Special size can be customized.
Materials :brass
Sizes :metric size
Available in H62 or H65 brass.
According to ANSI.
Main specs:2g - 3/8"
Materials :brass
Sizes :inch size and metric size
Available in H62 or H65 brass.
According to ANSI,DIN,BSW,etc.
Main specs:0g - 1/2"or M2 - M12.
Special size can be customized.
Materials :brass
Sizes :inch size and metric size
Available in H62 or H65 brass,etc.
According to ANSI,DIN,BSW,etc.
With metric size from M6 to M50,inch size from 10g to 2".
Special size can be customized.
Materials :brass
Sizes :inch size and metric size
Available in H62 or H65 brass.
According to ANSI,DIN,BSW,etc.
Main specs:2g - 1/2" or M2 - M12.
Materials :brass
Sizes :inch size and metric size
Available in H62 or H65 brass.
According to ANSI,DIN,BSW,etc.
Main specs:M2- M12 or 0g - 3/4".
Special size can be customized.
Materials :brass
Sizes :inch size and metric size
vailable in H62 or H65 brass.
According to ANSI,DIN,BSW,etc.
Main specs:#0 - 1/2".
Special size can be customized.
Materials :brass
Sizes :inch size and metric size
Brass fin neck diamond head machine screws are our custom-made products.
Materials :brass
Sizes :12g to 1/2"
Available in H62 or H65 brass.
According to ANSI,DIN,BSW,etc.
Main specs:0g - 24g or M2 - M12.
full body,cutting threads.
Materials :brass
Sizes :inch size and metric size
Available in H62 or H65 brass.
According to ANSI,DIN,BSW,etc.
Main specs:0g - 24g or M2-M10.
Special size can be customized.
Materials :brass
Sizes :inch size and metric size
Available in H62 or H65 brass.
According to ANSI,DIN,BSW,etc.
Main specs:0g - 24g or M2-M10
Materials :brass
Sizes :inch size and metric size
Available in H62 or H65 brass.
According to ANSI,DIN,BSW,etc.
Main specs:2g - 24g or M2 - M10
Special size can be customized.
Materials :brass
Sizes :inch size and metric size
Yushung products brass socket cap screws includings as follows.
Metric size:M3 - M20
Inch size:2g - 3/4"
Full threads or parts threads are available.
Materials :brass
Sizes :M3 - M20 or 2g - 3/4"
Copper Roves are sized according to the wire gauge of the copper nails they are used with (the higher the number, the thinner the nail) so they have a tight fit on the nail.
Copper nails and roves are normally sold by weight or quantity.
Materials :Copper
Sizes :6mm -19mm
copper nails are being used in a variety of construction jobs. These include copper metal fabrication,clay and cement roofing,for plywood roof decks, floor and skirting boards,etc.
According to ANSI,DIN,BSW,etc.
With inch size from 16g to 4g.
Length:1/2" - 6".
Special size can be customized.
Specifications :Copper nails copper square shank boat nails
Materials :copper
Sizes :inch size and metric size
Copper studs were made by rolling threads.We mainly produce M6 - M20 copper studs with full threads.Length is customised.
Materials :Copper
Sizes :M6 - M20
Kuprodur hex socket cap screw M5 to M12
length from 10mm to 100mm
Materials :Kuprodur
Sizes :M5 - M12
Available in Cu5 bronze.
According to ANSI,DIN,BSW,etc.
With UNC,UNF,metric threads,etc.
Main specs:M6 - M24
Materials :Cu5
Sizes :inch size and metric size
Available in Cu5 bronze.
According to ANSI,DIN,BSW,etc
With UNC,UNF,metric threads,etc.
Main specs:M6 - M24.
Materials :Cu5
Sizes :inch size and metric size
These aluminium bronze socket cap bolts are full body with partial threads.M3 - M20 can be supplied.
Specifications :M3 - 20
Materials :aluminium bronze
Sizes :M3 - M20
Available in C61400,C61900,C63000 aluminium bronze.
According to ANSI,DIN,BSW,etc.
With metric size from M6 to M20,inch size from 1/4 to 3/4".
Specifications :C63000 Aluminioum bronze socket cap bolts
Materials :Aluminium bronze
Sizes :inch size and metric size
Available in C63000 aluminium bronze.
According to ANSI,DIN,BSW,etc.
With metric size from M6 to M30,inch size from 1/4 to 1".
Materials :Aluminium bronze
Sizes :inch size and metric size
Available in C63000 aluminium bronze.
According to ANSI,DIN,BSW,etc.
With metric size from M6 to M60,inch size from 1/4 to 3".
Specifications :Copper bolts C63000 aluminium bronze studbolt with heavy hex nut
Materials :C63000
Sizes :inch size and metric size
Available in C61400,C61900,C63000 aluminium bronze.
According to ANSI,DIN,BSW,etc.
With metric size from M6 to M60,inch size from 1/4 to 2 1/2".
Materials :Aluminium bronze
Sizes :inch size and metric size
Available in C61400,C61900,C63000 aluminium bronze.
According to ANSI,DIN,BSW,etc.
With metric size from M6 to M60,inch size from 1/4 to 2 1/2".
Materials :Aluminium bronze
Sizes :inch size and metric size
Available in C61400,C61900,C63000 aluminium bronze.
According to ANSI,DIN,BSW,etc.
With metric size from M6 to M60,inch size from 1/4 to 2 1/2".
Materials :Aluminium bronze
Sizes :inch size and metric size
C63000 nickel aluminium bronze coupling nuts from M10 to M36 or 1/2" to 1 1/2".
Materials :aluminium bronze
Available in C61400,C61900,C63000 aluminium bronze.
According to ANSI,DIN,BSW,etc.
With metric size from M6 to M60,inch size from 1/4 to 2 1/2".
Materials :Aluminium bronze
Sizes :inch size and metric size
Available in C51000,C52100,C83600 phosphor bronze,etc.
According to customer's drawing or sample or international standards.
With unc,unf,bsw,metric threads.
Match with heavy hex nuts.
Specifications :Copper bolts phosphor bronze studbolts C51000 C521000 C83600
Materials :phosphor bronze
Sizes :inch size and metric size
Available in C51000,C52100 phosphor bronze.
According to ANSI,DIN,BSW,etc.
Special specs can be customized.
Including Hex Bolt,u-bolts,T-bolts,L-bolts,shoulder botls.
Main specs:M6 - M52.
Match with nuts,washers,etc.
Specifications :Copper bolts Phosphor bronz bolts
Materials :phosphor bronze
Sizes :inch size and metric size
Available in C51000,C52100,C83600 phosphor bronze,etc.
Phosphor Bronze Finished Hex Nuts.
Phosphor Bronze Heavy Hex Nuts.
Phosphor Bronze Jam Hex Nuts.
Phosphor Bronze Acorn Nuts.
Phosphor Bronze Flange Nuts.
Specifications :Copper nuts phosphor bronz nuts
Materials :phosphor bronze
Sizes :inch size and metric size
Available in C83600/CuSn5Zn5Pb5 phosphor bronze.
According to ANSI,DIN,ISO,etc.
With metric size from M8 to M30,inch size from 1/4" to 1".
Special specs can be customized.
Specifications :Copper screw C83600 slotted flat head machine screws
Materials :C83600
Sizes :inch size and metric size
Available in C51000,C52100,C83600 phosphor bronze,etc.
According to customer's drawing or sample or international standards.
With unc,unf,bsw,metric threads.
Specifications :Copper bolts Phosphor bronze special bolts with shoulder
Materials :CuSn5 CuSn6 CuSn8
Sizes :inch size and metric size
C51000 Phosphor bronze machine screw din7985
M3 to M6
length M5 to M50
Materials :phosphor bronze
Sizes :M3 to M6
C51000 phosphor bronze machine screw slot pan head
M3 to M6
length 5mm to 50mm
Materials :phosphor bronze
Sizes :M3 to M6
Available in monel 400 / K500.
According to ANSI,DIN,BSW,etc.
With metric size and inch size.
Special size can be customized.
Head style:Flat,oval,round,pan head,etc.
Drive:slot,square,phillips,etc.
Main specs:4g - 24g.
Specifications :Monel screws monel wood screws with cutting threads
Materials :monel 400 /k500
Sizes :inch size and metric size
Available in monel 400 / K500.
According to ANSI,DIN,BSW,etc.
With metric size from M6 to M50,inch size from 10g to 2".
Special size can be customized.
Specifications :Monel bolts monel hex cap bolts B164
Materials :monel 400 /k500
Sizes :inch size and metric size
C65100 / C65500 silicon bronze strut bolts slotted flat head are our regular products with full body and part threads.
Standard:ANSI,BSW,DIN,GB,etc.
C65100 conforms to F468K.
C65500 conforms to F468L.
Silicon Bronze Slotted Flat Head Machine Bolt Full Body With Partial Threads B18.6.3
C65100 / C65500 silicon bronze strut bolts slotted flat head are our regular products with full body and part threads.
Standard:ANSI,BSW,DIN,GB,etc.
C65100 conforms to F468K.
C65500 conforms to F468L.
Silicon Bronze Slotted Flat Head Machine Bolt Full Body With Partial Threads B18.6.3
Shank dia:1/4" to 3/4".
Tensile Strength:500-650Mpa.
Packing: Polybag and carton.
Tensile Strength:500-650Mpa.
Packing: Polybag and carton.
Materials :silicon bronze
Sizes :1/4
Silicon bronze strut bolts slotted oval head are Yushung's competitive products with full body,partial threads.
Silicon Bronze Slotted Oval Head Strut Bolt Full Body With Partial Threads B18.6.3
Shank dia:1/4" to 3/4".
Materials :silicon bronze
Sizes :1/4" to 3/4"
Silicon bronze heavy hexagon cap screws are available in C65100 or C65500.
According to ANSI/ASME B18.2.1
Threads:1/4" to 3/4"
Full threads or partial threads are available.
Materials :silicon bronze
Sizes :1/4" to 3/4"
Our machined theads must be tested with Go & NoGo guage,even 14-24NS threads.
Materials :silicon bronze

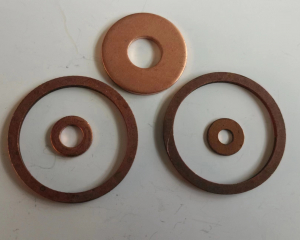

Our punching workshop manufactues copper washers.
Materials :copper
Sizes :M3 to M60
Marine Grade C65100 Silicon Bronze Wood Screws 24g x 2 1/2",3",3 1/2",4",5",6"are our regular products.All are full body with cut threads of 2/3 length.We produce full series of silicon bronze wood screws from 4g to 24g as well as special wood screws.
Materials :Silicon bronze 65100 grade
Sizes :24g
Marine Grade C65100 Silicon Bronze Wood Screws 20g x 2 1/2",3",3 1/2",4",5",6"are our regular products.All are full body with cut threads of 2/3 length.We produce full series of silicon bronze wood screws from 4g to 24g as well as special wood screws.
Materials :Silicon bronze 65100 grade
Sizes :20g
Marine Grade C65100 Silicon Bronze Wood Screws 18g x 1 1/2",2",2 1/2",3",3 1/2",4",5",6" are our regular products.We produce full series of silicon bronze wood screws from 4g to 24g as well as special silicon bronze wood screws.
Materials :Silicon bronze 65100 grade
Sizes :18g
Marine Grade C65100 Silicon Bronze Wood Screws 16g x 1 1/2",1 3/4", 2",2 1/4",2 1/2",3",3 1/2",4",5",6" are our regular products.We produce full series silicon bronze wood screws from 4g to 24g as well as special silicon bronze wood screws.
Materials :Silicon bronze 65100 grade
Sizes :16g
