SOCKET HEAD CAP SCREWS
MAUDLE INDUSTRIAL CO., LTD.
About Company
MAUDLE INDUSTRIAL CO., LTD.
TAIWAN
No. 10, Ln. 187, Xihu Rd., Dali Dist., Taichung City 412, Taiwan
886-4-24933000
886-4-24931000
Please login
Model / Specification
SOCKET HEAD CAP SCREWS
Country of Origin
TAIWAN
Surface Treatment
SOCKET HEAD CAP SCREWS
Material
SOCKET HEAD CAP SCREWS
Alias
SOCKET HEAD CAP SCREWS
Socket Head Cap Screws
Patent
SOCKET HEAD CAP SCREWS
Head Marking
Capacity
SOCKET HEAD CAP SCREWS
Minimum Order Quantity
SOCKET HEAD CAP SCREWS
Detailed Description

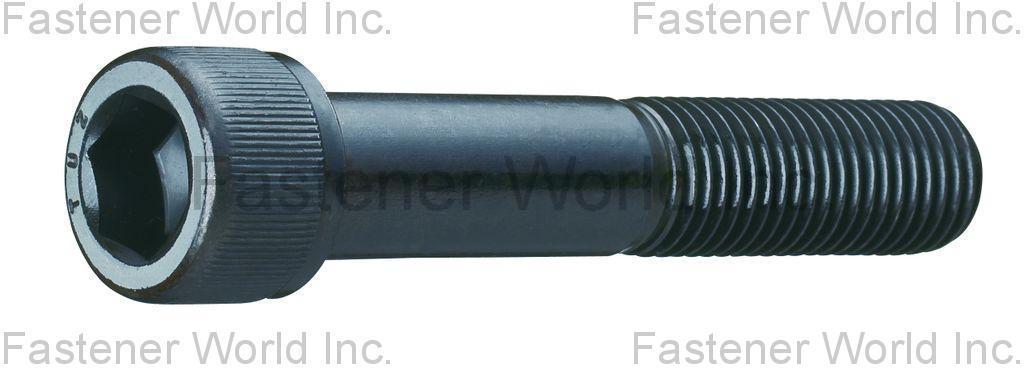

METRIC HEXAGON SOCKET HEAD CAP SCREWSAccording To：DIN 912-1983/ISO 4762-1997 Material：Alloy Steel SCM435、Stainless Steel304 Strength Grade：12.9; 10.9; 8.8（M3~M24） Tensile Strength：120~140 kgf/mm2 Hardness：HRC 39~44 Surface Treatment：Black Oxide Class of Thread： 5g6g HEXAGON SOCKET HEAD CAP SCREWSAccording To：ASME B18.3-2002 Material：Alloy Steel SCM435、Stainless Steel 304 Hardness：HRC 39~45 Surface Treatment：Black Oxide Screw Threads：ANSI B1.1 UNC, UNF Class of Thread：#6 Through 1"- -3A Over 1" - -2A
