Air Hydraulic Spin-Pull Rivnut Tool
CHIAO CHANG PNEUMATIC TOOL CORP.
About Company
CHIAO CHANG PNEUMATIC TOOL CORP.
TAIWAN
1F, NO. 159, SEC. 2, DATONG RD., XIZHI DIST., NEW TAIPEI CITY 221, TAIWAN
886-2-86926800
886-2-86926804
Please login
Model / Specification

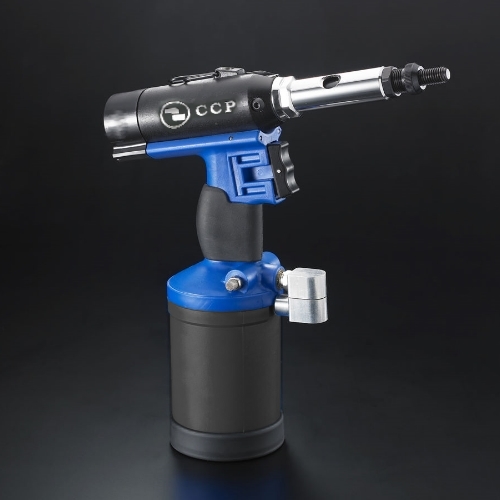

CCP-25 / Air Hydraulic Rivnut Tools
Country of Origin
TAIWAN
Surface Treatment
yes
Material
Alias
Rivet Nut Tools
Hand Rivet Tools, Hand Rivet Nut/rivet Bolt Tools, Air Hydraulic Rivet
Blind Nuts / Rivet Nuts
Blind Rivet Studs
Pneumatic/hydraulic Riveters
Truck & Trailer Rivets
Structural Rivets
Patent
Head Marking
Capacity
Minimum Order Quantity
Detailed Description
. for setting standard spin pull tool
(6-32 ~ 1/2-13UNC);(M3 ~ M12 ) in all materials
. Rivet Nut Sizes: (#6, #8, #10, 1/4, 5/16, 3/8, 1/2 inch ); (M3, M4, M5, M6, M8, M10, M12 )
. Stroke: 7 mm (0.276 inch)
. Working Air Pressure: 85 ~ 95 psi (5.9 ~ 6.7 kg/cm2)
. Pull Force (85 psi): 2176 kg (4800 lbs)
https://www.ccptool.com
(6-32 ~ 1/2-13UNC);(M3 ~ M12 ) in all materials
. Rivet Nut Sizes: (#6, #8, #10, 1/4, 5/16, 3/8, 1/2 inch ); (M3, M4, M5, M6, M8, M10, M12 )
. Stroke: 7 mm (0.276 inch)
. Working Air Pressure: 85 ~ 95 psi (5.9 ~ 6.7 kg/cm2)
. Pull Force (85 psi): 2176 kg (4800 lbs)
https://www.ccptool.com
