CHIAO CHANG PNEUMATIC TOOL CORP.

About Company


Model / Specification

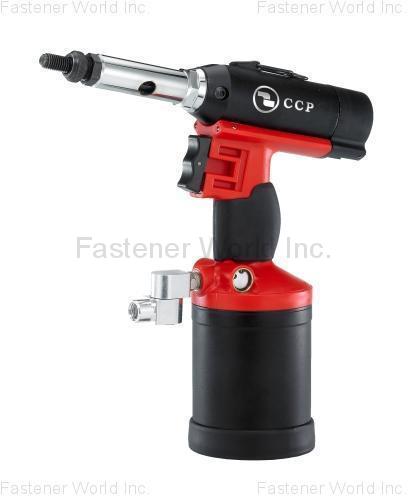

CCP-30M, Air Hydraulic Spin-pull Rivet Nut Tools
Country of Origin
TAIWAN
Surface Treatment
yes
Material

Alias

Hand Rivet Tools, Hand Rivet Nut/rivet Bolt Tools, Air Hydraulic Rivet
Rivet Nut Tools
Blind Nuts / Rivet Nuts
Truck & Trailer Rivets
Structural Rivets
Pneumatic/hydraulic Riveters
Patent

Head Marking

Capacity

Minimum Order Quantity

Detailed Description
.Can use the standard (M4 ~M12)& (8-32 ~ 1/2-13UNC) rivet nut all materials.

.tie-rod sizes:(M4,M5,M6,M8,M10,M12)&(#8,#10,1/4,5/16,3/8,1/2 inch)

.Stroke: 7 mm (0.276 inch)

.Working Air Pressure: 85 ~ 95 psi (5.9 ~ 6.68 kg/cm2)

.Pull Force (85 psi): 2724 kg (6000 lbs)
